OEM




SIELC Technologies developed and manufactures several advanced OEM products for the chromatography and other precision liquid handling projects. Custom features are available such as: communication protocol, type of electrical connections, supply voltage, and mounting means. Contact us for more detals.


Available products
  • Valve high pressure
  • Valve high pressure with driving module
  • Dynamic high pressure mixer
  • Low pressure pump module
  • Low pressure syringe pump
  • High pressure pump module
  • Pulse damper with purge valve and with/without pressure transducer .
  • Autosampler module


High pressure valve

Different configurations of the valve rotor and stator are available. Small size, flexible control.

Standard features:

Supply voltage: 24V
Max current: 250 mA
Communication: RS232/485
Materials: SS316, PEEK

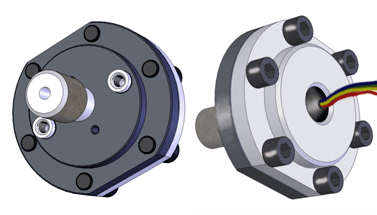

Pulse damper

Compact size with build in purge valve and pressure transducer . Liquid less design. Low size and weight. Close to zero dead volume. Wide range of operation pressure.

Standard features:

Supply voltage: up to 10V
Sencitivity: 10mV/1000psi
Materials: SS316, PTFE



Data acquisition AD converter and software



Small external 24 bit data acquisition module. USB communication. No additional power. Two independent data acquisition channels. Powerful data interpretation and quantitation software. The software controls of external devices such as pumps, detectors, autosamplers, fraction collectors of many brands and models.

OEM version without enclosure is available.







High pressure pump

Reciprocating pump. Wide range flow speed. Several stroke volumes.

Standard features:

Supply voltage: 24V
Max current: 1 A
Communication: RS232/485
Materials: SS316, PTFE
Flow rate up to 10 mL/min with pressure up to 6000 psi/450 bar or up to 30 mL/min with pressure up to 3000psi/220 bar

Buil-in two channels degasser, proportional valve, pulse dampener, and purge valve in a small fully operational package.



Dynamic mixer

Internal volume from 10 to 500 mcl
2, 3, or 4 inlet ports
Adjustable mixing speed for optimal performance
Self diagnostic of rotor rotation
Pressure up to 6000 psi (350 bars)
RS232/485 control
Small size

Standard features:
Supply voltage: 24V
Max current: 250 mA
Communication: RS232/485
Materials: SS316, PTFE



Low pressure pump

Reciprocating pump with reverse flow capability. Wide range flow speed. Several stroke volumes.

Standard features:
Supply voltage: 24V
Max current : 250 mA
Communication: RS232/485
Materials: PTFE, Aluminum ceramic



Autosampler module

An autosampler module can be used as sampling device for all liquid handaling applications. Optional high pressure flow switching valve with low dead volume. Small foot print only 6x8x5″ size.
Up to 40 vials. Random vial access. Low carriover.
High level communication protocol.
